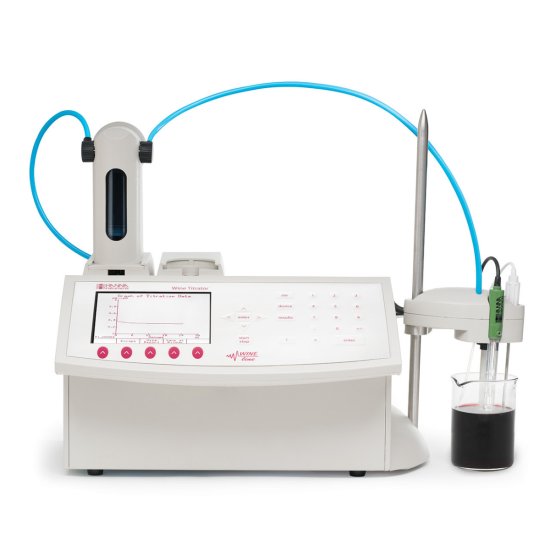

HI901W
Automatic Potentiometric Titrator for Wine
All-in-one
titration solution made for wine.
The
Wine Titrator is perfect for winemakers who need accurate results,
ease-of-use, and the ability to expand the system as their analytical
needs grow. It comes preloaded with methods for wine analysis, and with
Hanna, you get the support you need to run them perfectly in your lab.
Get
the most out of one device.
Titrate
for a variety of measurements including pH, Total Acidity, Free &
Total Sulfur Dioxide, Formol Number, Volatile Acids, Reducing Sugars, and
many more.
Hanna's
Wine Titrator comes preloaded with methods for wine analysis, and with
Hanna, you get the support you need to run them perfectly in your lab.
Optimized
for Wine
Supplied
with a full suite of standard wine methods, the Wine Titrator is optimized
for winemakers. Packages are designed so that you’ll have everything you
need to produce quality wine. Our preloaded packages include the following
methods:
| Titratable
Acidity |
| Free
SO₂ (Ripper) |
| Total
SO₂ (Ripper) |
| Free
SO₂ (AO) |
| Total
SO₂ (AO) |
| Volatile
Acid |
| YAN
(Formol Number) |
| Reducing
Sugar |
Titrator
Dosing System
Change
reagents without worry.
Our
exchangeable Clip Lock™ burette system helps you conveniently
separate and switch between your reagents so you don’t have to be
concerned about cross-contamination.
Feel
confident in your results.
Our
unmatched 40,000 step piston driven dosing pump is capable of dosing
extremely small and highly accurate volumes of reagent, helping you
achieve a very precise endpoint.
Better
design for increased precision.
A
dynamic dosing algorithm allows for timely and accurate titration results
by providing larger doses near the beginning of a titration and smaller,
more precise doses near the titration endpoint.
Display
& Navigation
All
of your important information is displayed.
Our
large color display shows you everything you need to know during testing.
Track
your progress in real-time.
Our
live titration curve helps you quickly recognize patterns and problems
that may arise during your analysis.
Explore
titrator menus with ease.
Custom
keys allow you to clearly navigate between screens so you don’t get lost.
Titrator
Data & Reporting
Highlight
your most important information.
Final
reports are customizable so you can make sure you are viewing and storing
your most important information.
Safeguard
the integrity of your data.
Our
software allows you to record full GLP (Good Laboratory Practice) data so
there is no need to compromise the quality of your results.
Move
your information easily across devices.
Use
our software or a USB to conveniently transfer files between your titrator
and computer.
Titrator
Connectivity
View
and print reports easily.
You
can print reports directly from the titrator with a connected printer and
conveniently view results with a connected monitor.
Take
advantage of the versatility.
Connect
the devices that help you most, whether it be an analytical balance for
automatic sample entry or a printer for your reports.
Specifications
-2.000 to 20.000 pH; -2.00 to 20.00 pH; -2.0 to 20.0 pH |
| pH
Resolution |
0.001
pH; 0.01 pH; 0.1 pH |
| pH
Accuracy |
±0.001
pH |
| pH
Calibration |
up
to five-point calibration, eight standard buffers and five custom
buffers |
| pH
Temperature Compensation |
automatic
from -5.0 to 105.0°C; 23.0 to 221.0°F |
| mV
Range |
-2000.0
to 2000.0 mV |
| mV
Resolution |
0.1
mV |
| mV
Accuracy |
±0.1
mV |
| mV
Calibration |
single
point offset |
| ISE
Range |
1
x 10⁻⁶ to 9.99 x 10¹⁰ concentration |
| ISE
Resolution |
1;
0.1; 0.01 concentration |
| ISE
Accuracy |
±0.5%
(monovalent ions); ±1% (divalent ions) |
| ISE
Calibration |
automatic,
up to five point calibration, seven fixed standard solutions
available (0.01, 0.1, 1, 10, 100, 1000, 10000 choice of
concentration) and five custom solutions |
| Temperature
Range |
-5.0
to 105.0°C; 23.0 to 221.0°F; 268.2 to 378.2K |
| Temperature
Resolution |
0.1°C;
0.1°F; 0.1K |
| Temperature
Accuracy |
±0.1°C;
±0.2°F; ±0.1K, excluding probe error |
| Potentiometric
Titrations |
acid/base
(pH or mV-mode), redox, precipitation, complexometric, non-aqueous,
ion-selective, argentometric |
| Analog
Boards Capability |
one
analog board for pH/ORP/ISE |
| Measurement
Units |
user-specified
expression of concentration units to suit specific calculation
requirements |
| Endpoint
Criteria |
single
equivalence point (1st or 2nd derivative) or fixed pH/mV value |
| Dosing
Pump Capability |
one
included |
| Flow
Rate |
user-selectable
from 0.1 mL/min to 2 x burette volume/min |
| Dosing
Accuracy |
±0.1%
of full burette volume |
| Burette |
one
25 mL burette included |
| Burette
Size Capability |
5,
10, 25, and 50 mL (auto-detection) |
| Dosing
Pump Resolution |
1/40000 |
| Stirrer
Type |
overhead
propeller type |
| Stirrer
Speed |
200
to 2500 rpm, resolution 100 rpm |
| Titrator
Methods |
up
to 100 methods (standard and user-defined) |
| Linked
Methods |
not
available |
| Back
Titrations |
not
available |
| Reports |
up
to 100 titration and pH/mV/ISE reports |
| Real
Time & Stored Graphs |
mV-volume
or pH-volume titration curve, 1st derivative curve or 2nd derivative
curve; pH mode, mV mode or ISE mode: pH/mV/concentration versus time |
| GLP
Conformity |
instrumentation
data storage and printing capabilities |
| Autosampler
Compatible |
not
available |
| Connectivity |
USB:
flash drive compatibility for transfer of methods and reports
RS232 for analytical balance
Parallel printer port |
