Description

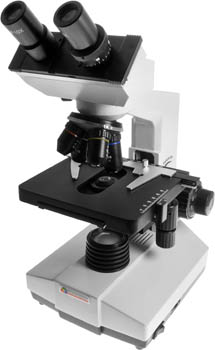

The MS1040A-DM Digital Binocular Microscope 1000x is a great biological microscope with
a 1.3MP built-in camera.  Also, it has a X-Y mechanical stage and comes with an Abbe N.A.
1.25 condenser. What's more it has a magnification range between 40-1000 x.

Applications
Biological microscope widely used to observe biological slices, bacteria and living tissue cultures,
fluid precipitation and research, and observing other transparent or translucent objects, power,
fine particles and other objects.


Features

Specifications

Head

Sliding Binocular Head, Interpupillary Distance: 55 - 75 mm, 45° Inclined, 360° Rotatable, Left & Right Diopter Adjustable

Eyepiece

Wide Field Plan WF10X

Objective

Achromatic 4x Achromatic 10x Achromatic 40x (s) Achromatic 100x (S, Oil)

Stage

Double Layers Mechanical Stage 140 x 155 mm, moving range 75 x 50mm

Condenser

Abbe Condenser N.A. 1.25, Φ2-Φ30mm Iris Diaphragm, with Φ32 filter holder

Focusing

Coaxial Coarse & Fine Focusing Adjustable Mechanism 25 mm, Precision 0.002 mm, with Tension Adjustment, with Safety Stop Ring

Light Source

LED Lamp 1W, brightness adjustable

Camera

Valid Pixel

1280×1024 (1.3MP)

Output Mode

USB2.0

Operation System

WINDOWS 2000/XP/VISTA 32 Bit or 64 Bit

Software

Scopelmage 9.0

Brand : Electro Tech
