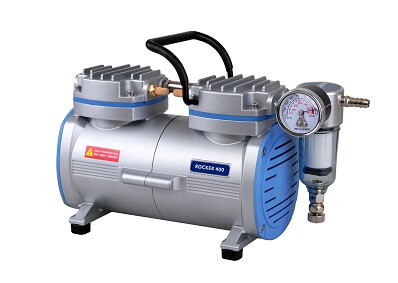

Oil Free Vacuum Pump / Dry Vacuum Pump Features:
◆ No air pollution, maintenance free
Rocker series lab vacuum pumps are driven by Piston, without the need of lubricant, regular oil changes and maintenance; with no oil pollution.
◆ Moisture trap with filter cartridge
Rocker 400 lab vacuum pump is equipped with filter cartridge at the air inlet to filter particle and moisture to prolong the life of pump.
◆ Vacuum regulator
Rocker series lab vacuum pumps are equipped with vacuum regulator to adjust vacuum.
◆ Thermal protection device
Every motor of Rocker series lab vacuum pumps has a built-in thermal protection device to shut off the pump automatically when overheated and then resume working when the temperature cools down.
◆ Prote™ overflow protection
Rocker 400 lab vacuum pump is equipped with Prote™ overflow protection which can prevent a large amount of liquid from being sucked into the pump.
Oil Free Vacuum Pump / Dry Vacuum Pump Video
Oil Free Vacuum Pump / Dry Vacuum Pump International Certificates:
◆ CE certification
◆ CSA certification
◆ IP 30 protection
◆ RoHS certification
Oil Free Vacuum Pump / Dry Vacuum Pump Applications
◆ Suspended solid test
◆ Vacuum filtration
◆ Microbiological test
◆ Air sampling
Specifications
| Rocker400 |
110V/60Hz |
220V/50Hz |
| Max. power |
100W |
80W |
| Max. current |
1.0A |
0.4A |
| Max. vacuum |
680 mmHg |
| Max. flow rate |
37 L/min |
34 L/min |
| Motor rotation speed |
1750 RPM |
1450 RPM |
| Horse power |
1/6 HP |
| Noise level |
52 dB |
| Hose barb |
ID8 (5/16 inch) |
| Net weight |
5.2Kg |
| Dimension (LxWxH) |
31 x 13.5 x 20.4 cm |
| Vacuum Regulator |
Yes |
| Overflow protection |
Yes |
| Thermal protection |
Yes |
