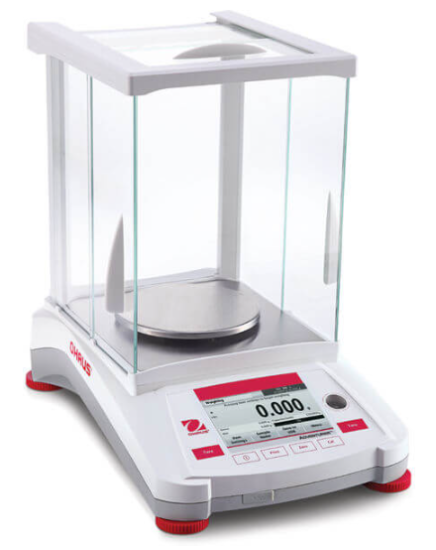

ADVENTURER™
SEMI-MICRO
OVERVIEW
Striking
the ideal balance between inventive features and functional,
uncomplicated weighing capabilities, the OHAUS Adventurer incorporates
all of the applications necessary for routine weighing and measurement
activities. With a color touchscreen, three-level user management to
fulfill GLP/GMP compliance capabilities, two USB ports, and much more,
Adventurer is the most complete balance in its class.
Weighing,
Parts Counting, Percent Weighing, Check Weighing, Dynamic Weighing,
Formulation, Density Determination, Totalization, Display Hold, Batch
Printing
4.3"
(109 mm) Full-color VGA graphic touchscreen with user-controlled
brightness
AC
adapter (included)
RS232,
USB Host, USB Device (included). GLP/GMP data output with real-time clock.
Metal
base, ABS top housing, stainless steel pan, glass draftshield with 2-piece
top mounted side doors & sliding top door (1mg models only),
illuminated up-front level indicator, weigh below hook, security bracket,
calibration lock, full housing in-use cover
Selectable
environmental filters, auto tare, user selectable span calibration points,
software lockout and reset menu, user selectable communication settings
and data print options, user definable project and user IDs, up to 9
operating languages.
SPECIFICATION
| Maximum
Capacity |
620
g |
| Readability |
0.001
g |
| Pan
Size |
5.1
in (130 mm) |
| Internal
Calibration |
Not
applicable |
| Draftshield |
Included |
| Auto
Door |
Not
applicable |
| Auxiliary
Display Model |
Available
as an Accessory |
| Battery
Life |
Not
applicable |
| Communication |
USB;
RS232 (Included); USB Host |
| Dimensions |
13.93
in x 13.39 in x 9.05 in (354 mm x 340 mm x 230 mm) (LxHxW) |
| Display |
High
resolution full colour VGA touch display |
| In-Use
Cover |
Included |
| Legal
for Trade |
Not
applicable |
| Linearity
± |
0.002
g |
| Minimum
Weight (USP, 0.1%, typical) |
1.6
g |
| Net
Weight |
5.8
kg |
| Pan
Construction |
Stainless
Steel |
| Power |
AC
Adapter (Included) |
| Repeatability,
typical |
0.001
g |
| Stabilization
Time |
2
s |
| Tare
Range |
To
capacity by subtraction |
| Units
of Measurement |
Singapore
Tael; Ounce Troy; Pennyweight; Grain;
Tical; Custom; Milligram; Momme;
Newton; Baht; Taiwan Tael; Gram; Hong Kong
Tael; Pound; Tola; Mesghal; Carat;
Ounce |
| Working
Environment |
10°C
– 30°C, 80%RH, non-condensing (50°F – 85°F, 80%RH, non-condensing) |
Product Information
Brand : Ohaus
