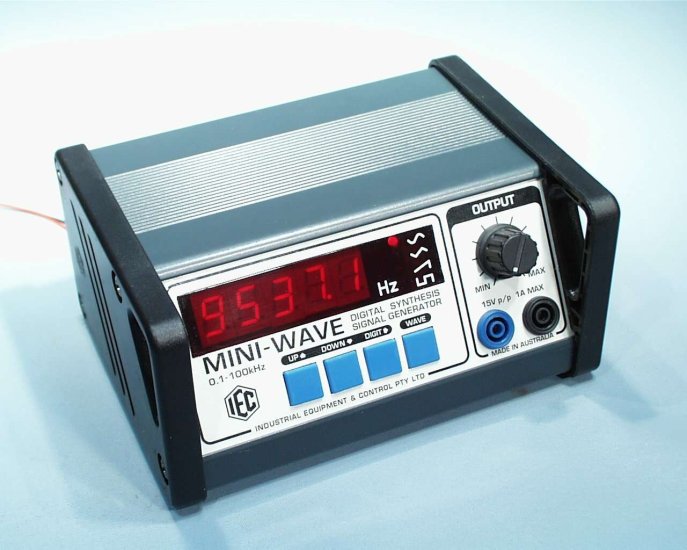

The "Mini-Wave" is a very compactDigital Signal Generator and provides Waveforms of: Sine, Square, Triangle and Sawtooth. It is crystal locked, therefore the accuracy is extremely high (approx 0.01%) and stability is perfect.
The instrument runs from240V.mains and provides an adjustable output of 15V peak to peak or 5V.AC. RMS. The output can supply up to 1 amp into the load. This is current limited against overload.
The IEC "Quick Set" system permits very fast setting of the preset frequency required and resolution is 0.1Hz up to 10kHz. From 10kHz up to 100kHz, the resolution is 1 Hz. Used for experiments using Kundt's Apparatus, or audio experiments or resonance experiments using inductance and capacitance. Can be used to demonstrate the functions of an oscilloscope.
The large output power permits the running of very large speakers or vibraters, such as Melde-s Apparatus
Product Information
Brand : IEC
