Product Description

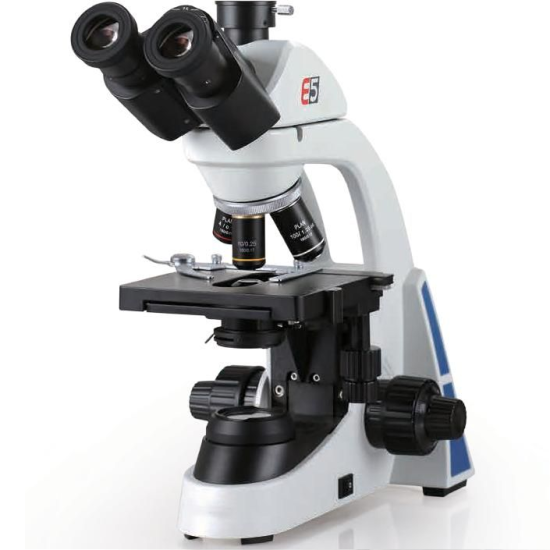

Having the right tools is important in any job, but the responsibility of nurturing and guiding curious minds needs uncompromising support. The Prism Optical E5 is designed from the ground up to help teachers concentrate on teaching instead of tinkering with their tools. Low position coaxial knobs allow for comfortable and precise control, while high-quality optics with optional plan achromat objectives provide wide and flat images that are ideal for image capture and for projecting on to large screens.
Features:
- 10x 18mm eyepieces with optional pointer or graticule,
- 4x, 10x, 40x, 100x (oil) objectives (achromat),
- Bright 3W LED illumination, and
- Coaxial focus and stage controls.
- Configuration: Standard trinocular
Specifications:
- Eyepieces: Wide field 10x/18mm with optional pointer or graticule
- Viewing Head: 30 degrees inclined binocular. Right eye diopter (+/- 5); Interpupillary Distance: 50 - 75 mm
- Eyepieces: Wide field 10x/18mm with optional pointer or graticule
- Objectives: Achromatic 4x 10x 40x (spring) 100x (oil, spring)
- Focus: Low position coaxial coarse and fine focus
- Coarse range: 25mm
- Fine precision: 0.002mm
- Stage: Mechanical stage Dual layer, coaxial control Slide holder, 132 x 140mm,
- Stage movement: 50 x 76mm
- Diaphragm: Iris diaphragm
- Condenser: NA 1.25 Abbe condenser with filter holder
- Illumination: Adjustable 0.2W LED (5700K - 6200K)
- Power Source: 6VDC 2A from 110-240VAC power supply
- Rechargeable: No
- Warranty: 2 year warranty on defective parts and workmanship
