Description

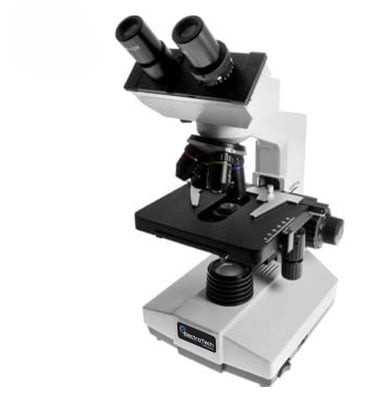

The MS1043A-DM Digital Binocular Microscope 1000x is a great biological microscope with a 3MP built-in camera. Also, it has a X-Y mechanical stage and comes with an Abbe N.A. 1.25 condenser. What's more it has a magnification range between 40-1000 x.
Applications
The USB digital imaging system captures microscope images and live video on a computer. This type of digital compound microscopy is ideal for teaching demonstrations, clinical examinations, laboratories, and advanced applications.
This microscope does not work out of the box with macOS. To use this microscope with macOS, you will need the appropriate software.
Please refer to the attched data reference sheet, for further information.
Features
- Magnification 40x - 1000x
- High brightness LED light transmission source
- 360° head rotation
- Abbe condenser
- Mechanical Stage
- 3MP Built-in Camera
Specifications
Head
Sliding Binocular Head, Interpupillary Distance: 55 - 75 mm, 45° Inclined, 360° Rotatable, Left & Right Diopter Adjustable
Eyepiece
Wide Field Plan WF10X
Objective
Achromatic 4x Achromatic 10x Achromatic 40x (s) Achromatic 100x (S, Oil)
Nosepiece
Quadruple Nosepiece
Stage
Double Layers Mechanical Stage 140 x 155 mm, moving range 75 x 50mm
Condenser
Abbe Condenser N.A. 1.25, Φ2-Φ30mm Iris Diaphragm, with Φ32 filter holder
Focusing
Coaxial Coarse & Fine Focusing Adjustable Mechanism 25 mm, Precision 0.002 mm, with Tension Adjustment, with Safety Stop Ring
Light Source
LED Lamp 1W, brightness adjustable
Camera
Valid Pixel
2048 × 1536 (3MP)
Output Mode
USB2.0
Operation System
WINDOWS 2000/XP/VISTA 32 Bit or 64 Bit
Software
Scopelmage 9.0
Dimensions
Weight (Net) 6 kg
Width 180 mm
Length 240 mm
Height 400 mm
Spec Sheet

Brand : Electro Tech
